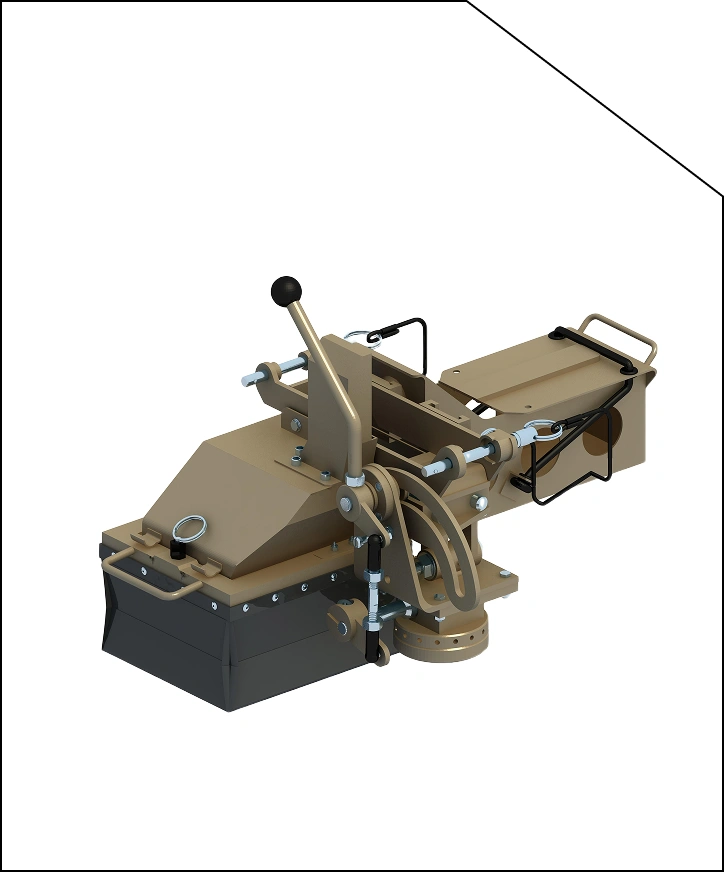

NM-101 GUN MOUNT
Weapon Acceptability
7.62 mm GPMG MAG 58 / M240, 5.56 mm MINIMI
Traverse Degree
Traverse restricted to 30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees (can be achieved up to 70 Degrees / 30 Degrees)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
15 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.
Type of Gun Mounts/Cradles
gun mounts/cradles

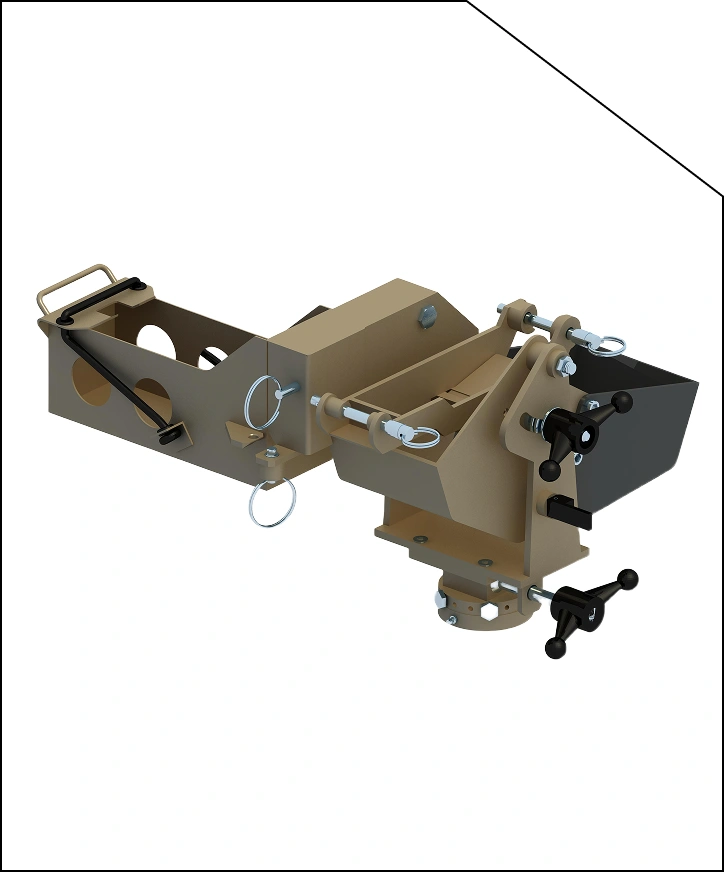

NM-112 GUN MOUNT
Weapon Acceptability
7.62 mm GPMG MAG 58 / M240, 5.56 mm MINIMI
Traverse Degree
Traverse restricted to 30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
15 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

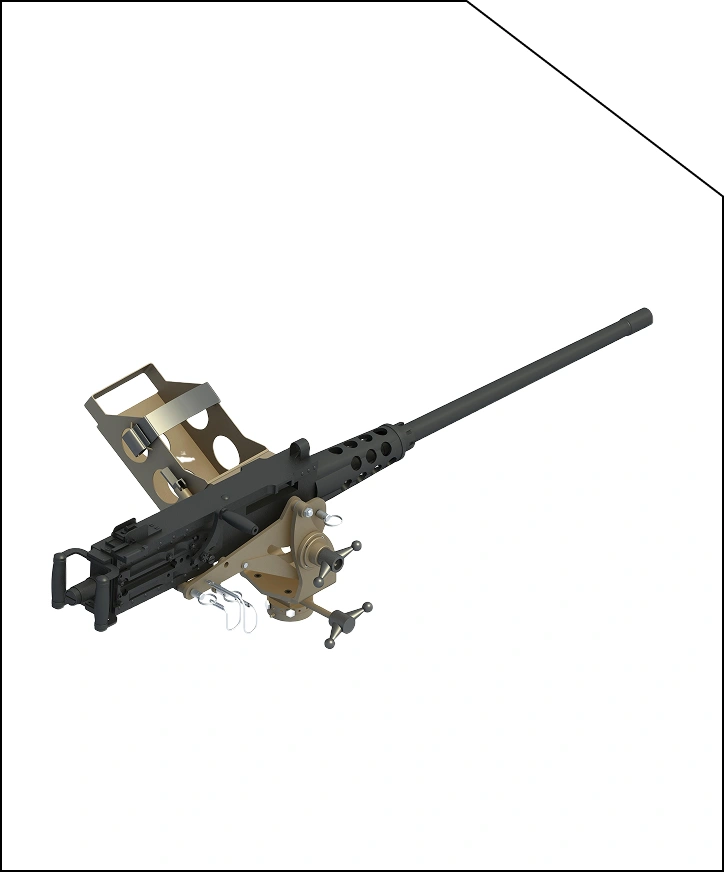

MULTI HARD MOUNT- 127H
Weapon Acceptability
12.7mm (50 Cal.) HMG M2HB
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
18 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

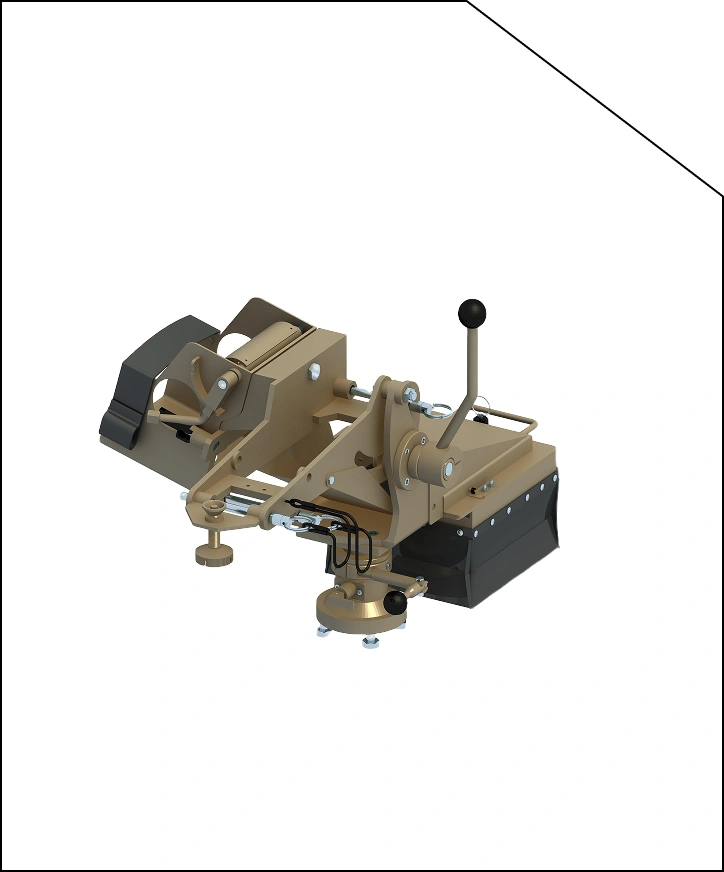

MULTI HARD MOUNT- 12762H
Weapon Acceptability
12.7mm (50 Cal.) HMG M2HB, 762MM GPMG M240/ FN MAG58
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
24 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

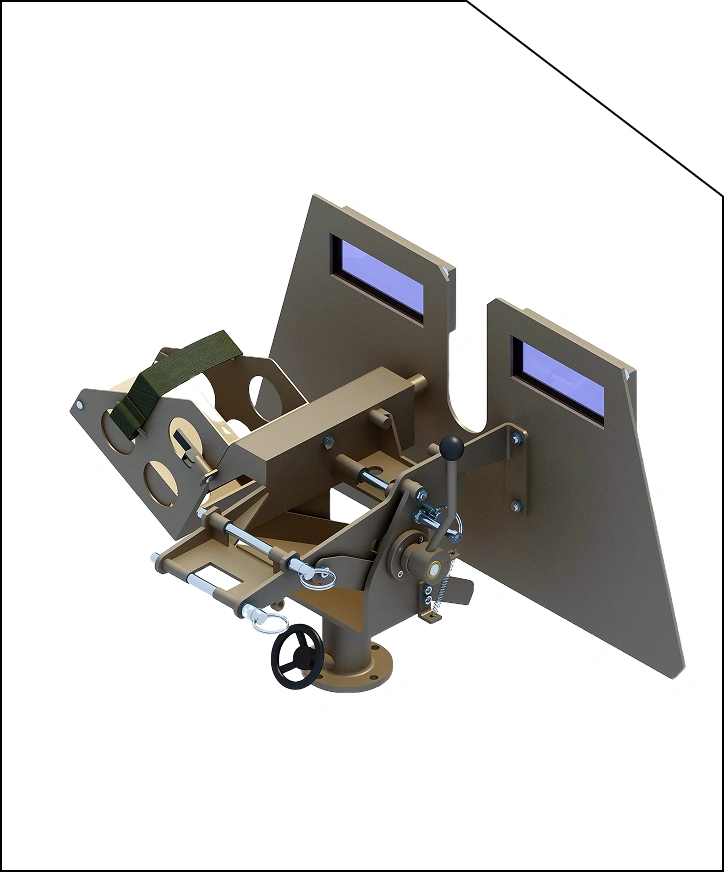

MULTI HARD MOUNT- 1276240-H
Weapon Acceptability
12.7mm (50 Cal.) HMG M2HB, 762mm GPMG M240 / FN MAG58, Mk19 40mm AGL
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
36 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

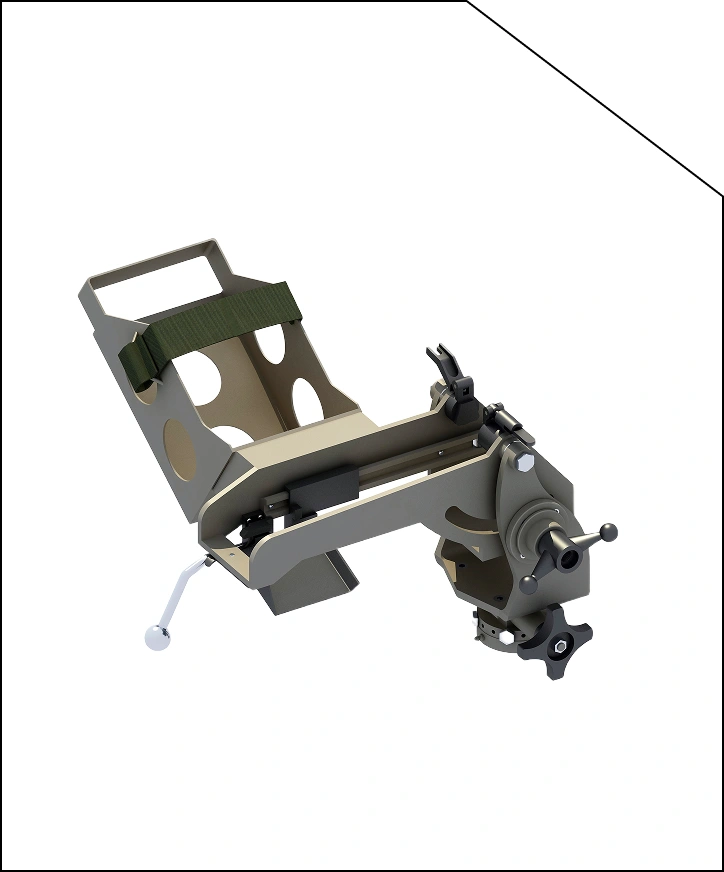

MULTI HARD MOUNT- 127CH
Weapon Acceptability
12.7mm Chinese Weapon
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
70 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
25 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

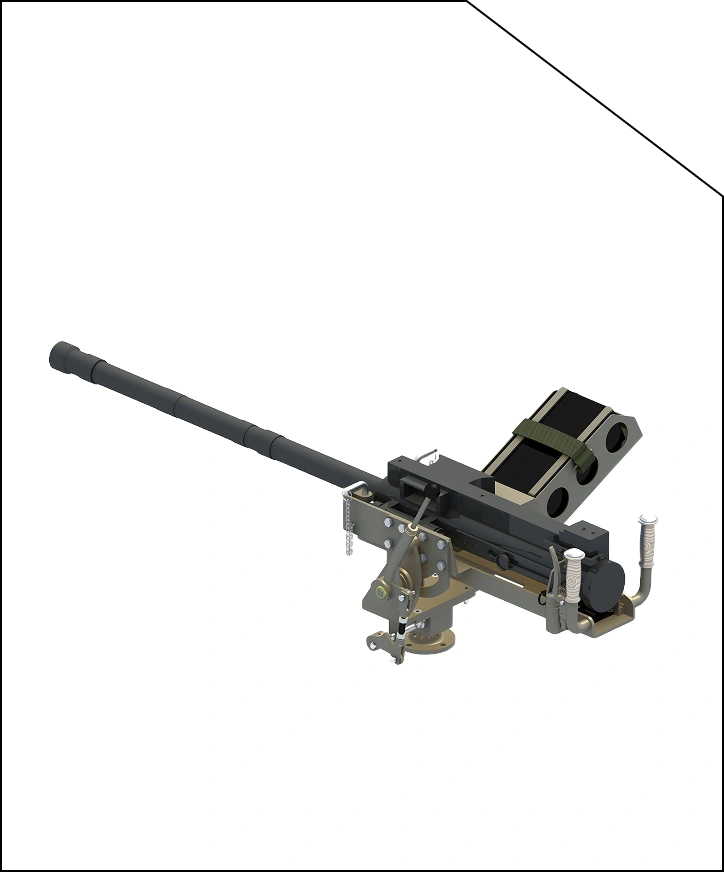

MULTI HARD MOUNT- 145CH
Weapon Acceptability
12.7mm Chinese Weapon
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
70 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system.
Weight
25 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

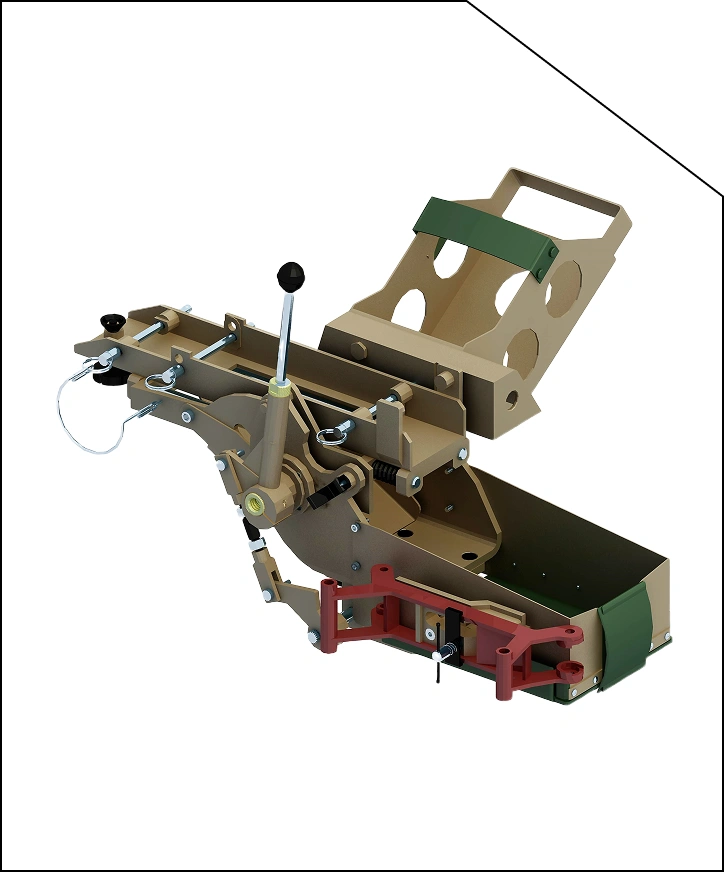

MSM- LIGHT WEIGHT (1276240-LWS)
Weapon Acceptability
12.7mm (50 Cal.) HMG M2HB, 762MM GPMG M240/ FN MAG58 Mk 19
40mm AGL
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
With Buffered system to absorb the recoiling forces of weapons. Single Lever Operation for Both Traverse and Elevation Depression angles Can be supplied with NATO adaption system
Weight
36 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.
MSM- BASIC (1276240-S)
Weapon Acceptability
12.7mm (50 Cal.) HMG M2HB, 762MM GPMG M240/ FN MAG58 Mk 19
40mm AGL
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
With Buffered system to absorb the recoiling forces of weapons. Single Lever Operation for Both Traverse and Elevation Depression angles Can be supplied with NATO adaption system
Weight
48 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

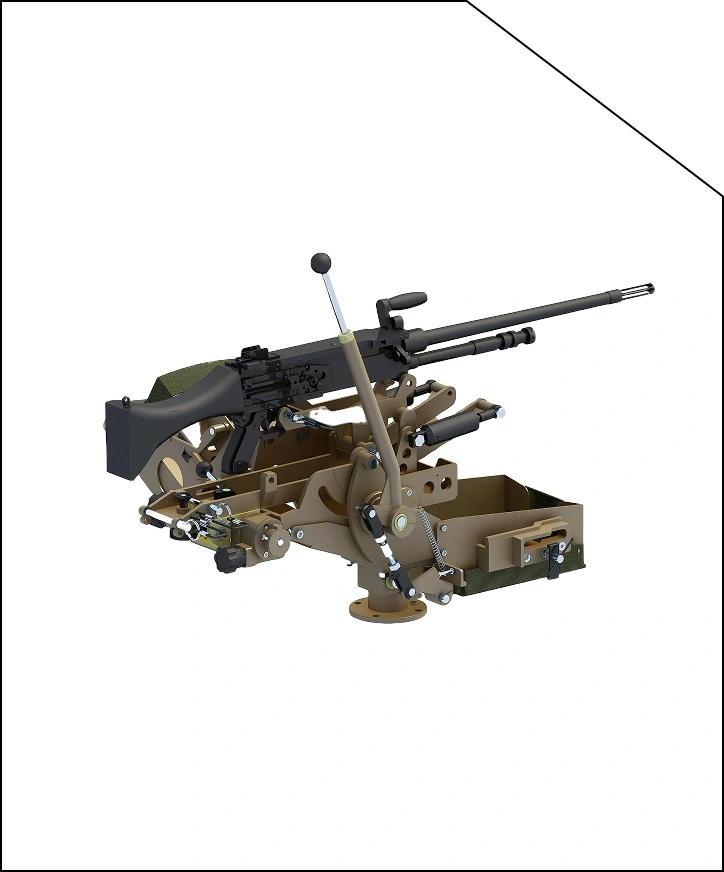

MSM- TUNING (1276240-ST)
Weapon Acceptability
7.62 mm GPMG MAG58 / M240 12.7mm (50 Cal.) HMG M2HB, MK19 40 mm AGL, 5.56mm MINIMI
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 15 Degrees (can be adjusted minorly as per end user requirement)
Design-Operational Specification
With Fine Tuning System, for accurate targeting and Target adjustment Single Lever Operation for Both Traverse and Ele./ Dep. angles. Can be supplied with NATO adaption system. With Shock Absorbing system to absorb the recoiling forces.
Weight
52 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

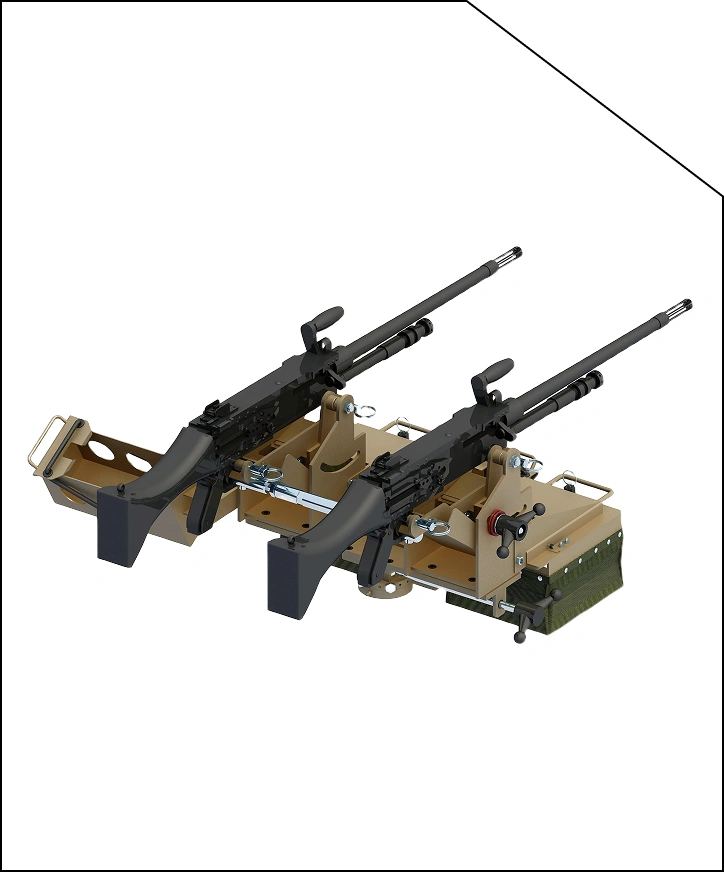

TWIN MOUNTS (762-NM101TW)
Weapon Acceptability
7.62mm GPMG MAG58/ M240, 5.56mm MINIMI
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 15 Degrees
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system. Separate Ammunition Box Holders
Weight
35 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.
TWIN MOUNTS (762-NM112TW)
Weapon Acceptability
7.62mm GPMG MAG58/ M240, 5.56mm MINIMI
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 15 Degrees
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system. Separate Ammunition Box Holders
Weight
30 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

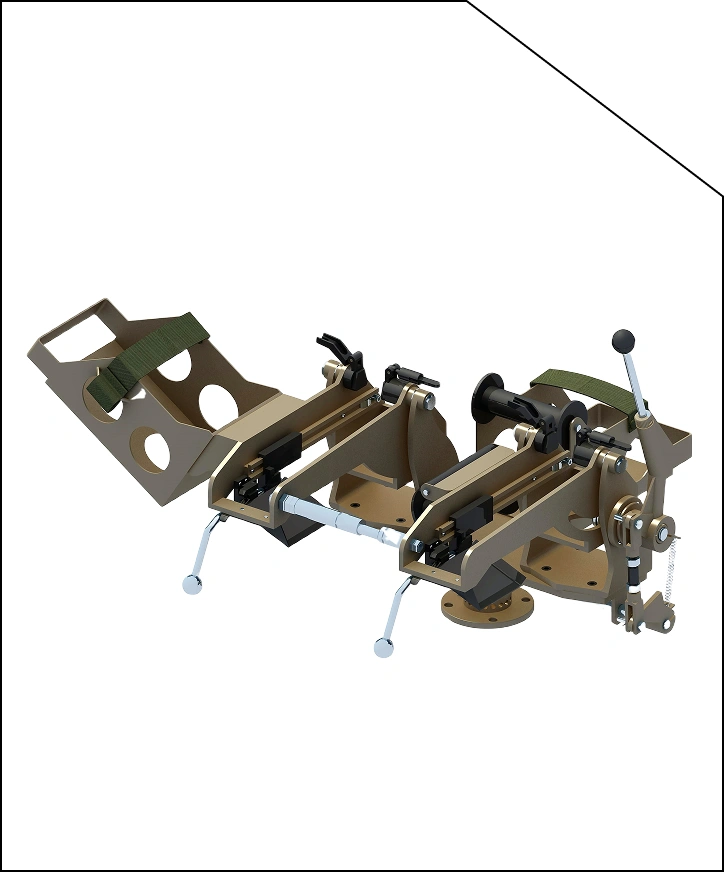

TWIN MOUNTS (762-CHTW)
Weapon Acceptability
7.62mm GPMG CHINESE
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 15 Degrees
Design-Operational Specification
Single Lever Operation for both Traverse and Elevation/Depression angles. Can be supplied with NATO adaption system. Separate Ammunition Box Holders
Weight
42 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

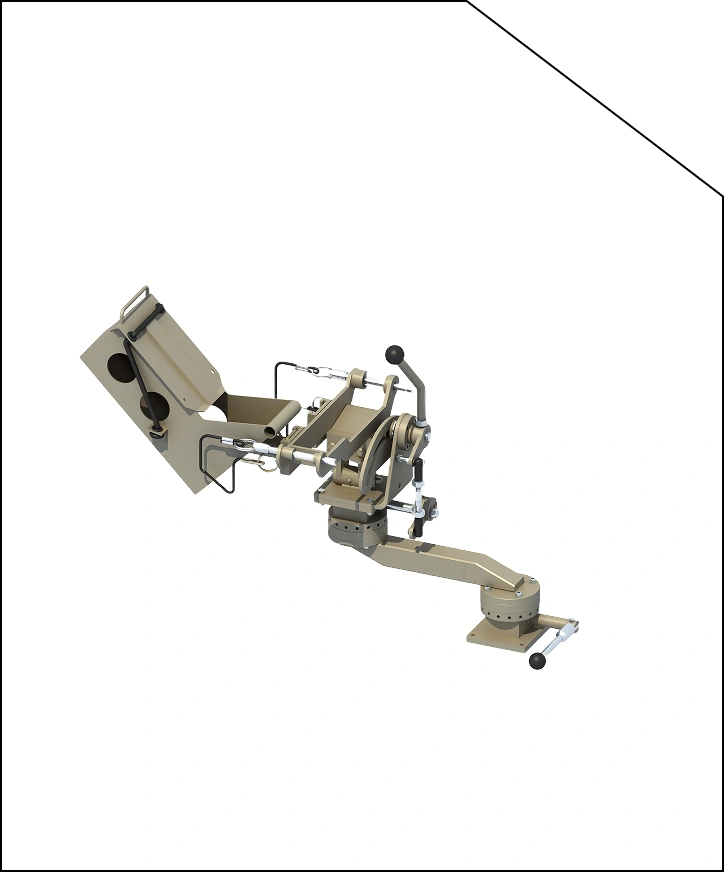

SINGLE SWING ARM (762-SSA)
Weapon Acceptability
7.62mm GPMG MAG58 / M240, 5.56mm MINIMI
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 10 Degrees (can be adjusted 70 Degrees/ 10 Degrees or lesser)
Design-Operational Specification
This system is used commonly on the vehicle for Co-driver/Gunner. Single Lever Operation for Both Traverse and Elevation Depression angles.
Weight
Swing Arm wight 6 kgs and Gun Mount weight 15kgs.
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

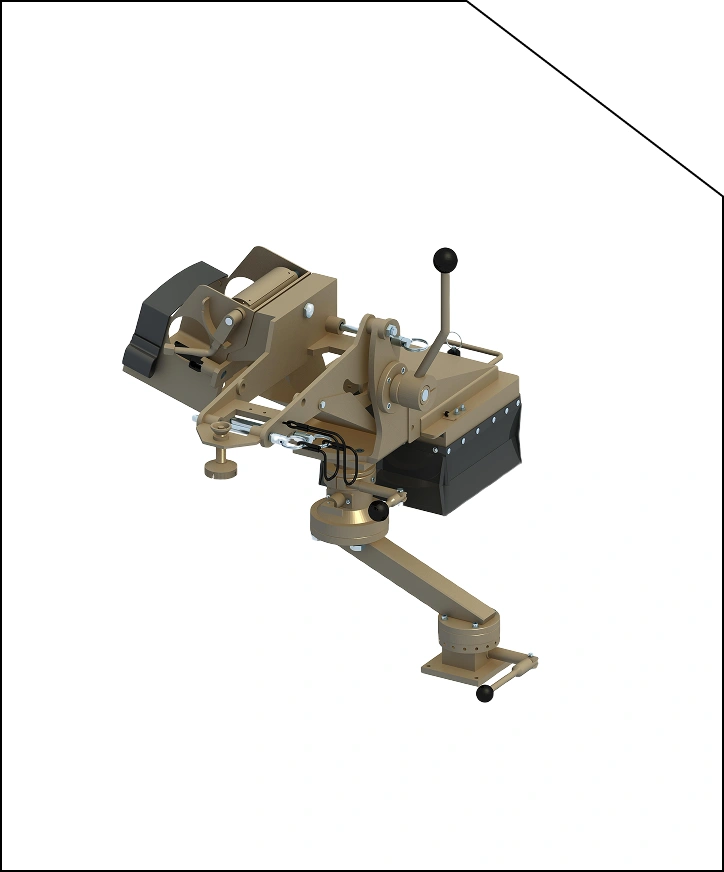

SINGLE SWING ARM (12762H-SSA)
Weapon Acceptability
12.7 MM HMG M2, 7.62mm GPMG MAG58
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation Depression
45 Degrees / 10 Degrees (can be adjusted 70 Degrees/ 10 Degrees or lesser)
Design-Operational Specification
This system is used commonly on the vehicle for Co-driver/Gunner. Single Lever Operation for Both Traverse and Elevation Depression angles.
Weight
Swing Arm wight 8 kgs and Gun Mount weight 24 kgs.
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.

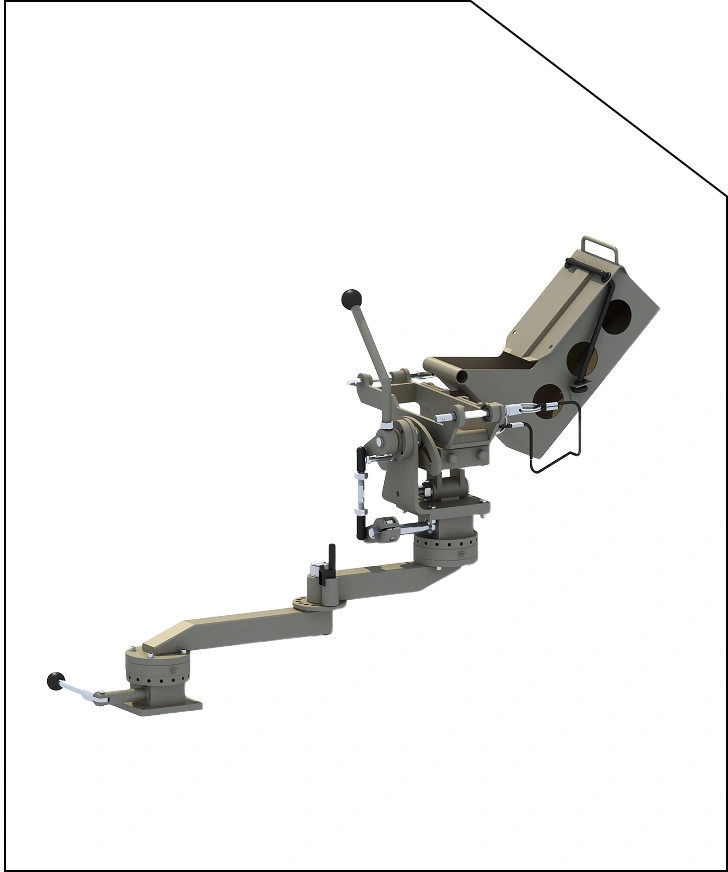

DOUBLE SWING ARM (762-DSA)
Weapon Acceptability
7.62 mm GPMG MAG58 / M240 5.56mm MINIMI
Traverse Degree
Traverse restricted to ±30 Degrees. Can be adjustable as per end user requirement.
Elevation / Depression
45 Degrees / 10 Degrees (can be adjusted 70 Degrees/ 10 Degrees or lesser)
Design-Operational Specification
This system is used commonly on the vehicle for Co driver/Gunner. Independent traverse lock for both arms. Single Lever Operation for Both Traverse and Ele./ Dep. angles. Can be used in land and sea operation.
Weight
25 kgs
Accessories Included
Empty Case Collector Bag, Ammunition Box Holders for both weapons.
